INDOOR CRETITIVED LED

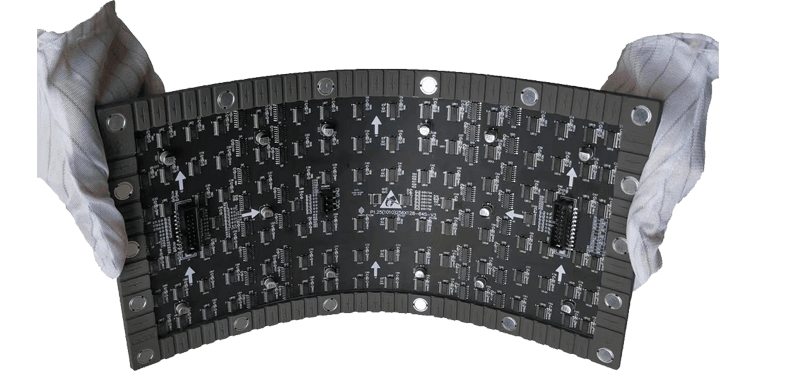

Creative Flexible LED module
Adopt sepcial design circuit layout PCB multiayer process design, the bending angle more than 135 degree.
Large angle, No Warping, Good Flexibility, No Degumming
Reliable High-quality Product
Composed of layers of quality raw materials, the flexible led module uses highly fireproof PCBs and soft bottom housing, thoroughly ensuring its reliability
Easy to Assemble
Strong Magnetic installation, Adjustable Flatness, Meet Varies of designs
Suitable for cylinder LED screen, Wave LED screen,Ribbon LED screen and different shapes Flexible LED screen
Model |
|
|
|
|
|
Pixel Pitch(mm) | P1.25 | P1.538 | P1.86 | P2 | P2.5 |
Resolution | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 |
Module Dimensions | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm |
Scan | 64s | 52s | 43s | 40s | 32s |
Brightness(nits) | 600 | 600 | 800 | 600 | 800 |
Color Temperature | 2500k~10000k | 2500k~10000k | 2500k~10000k | 2500k~10000k | 2500k~10000k |
Viewing Angle(H./V.) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
Gray Scale(Bit) | 16 | 16 | 16 | 16 | 16 |
Fresh rate(Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
Working Voltage | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ |
Operating Temp(℃) | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ |
