Rental E1 plus
Rental Outdoor & Indoor LED Display Screen
Dimension: 500*1000mm/500x500mm
Pixel Pitch Indoor:2.6mm, 2.9 mm, 3.9 mm, 4.8 mm
Pixel Pitch Outdoor: 2.9mm, 3.9 mm, 4.8 mm
Full Front maintenance or rear maintenance

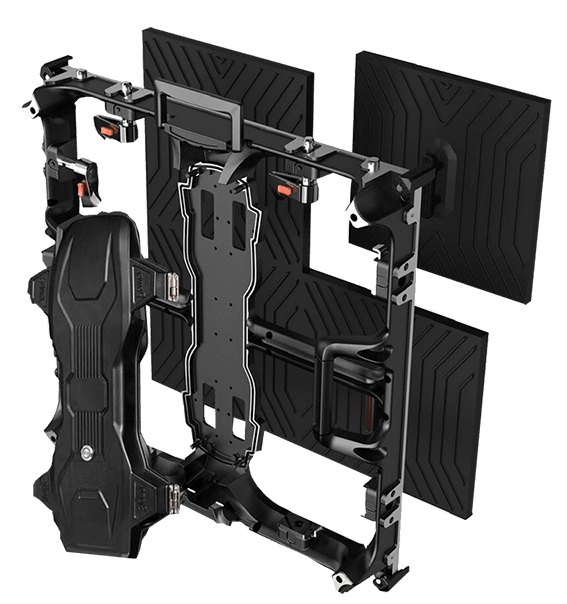

Magnetic module design, module, power supply can take out by front, maintenance speed faster than traditional produdcts
500x1000 and 500x500 cabinet can Mixed Splicing
One-man operation, quick assemble, convenient installation
Various installation methods,hanging installation and Stacking installation
Suitable for different shapes
Curve LED screen
90 degree LED screen
with 45 degree Bevel Edges, build 90 degree corner
Model | ||||
Pixel Pitch(mm) | P2.604 | P2.976 | P3.91 | P4.81 |
Resolution | 96×96 | 168X168 | 128X128 | 104X104 |
Module size | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
Actual Cabinet Dimensions(WxHmm) | 500x1000mm 500x500mm | 500x1000mm 500x500mm | 500x1000mm 500x500mm | 500x1000mm 500x500mm |
Overall Dimensions(WxHxDmm) | 500x500x80mm | 500x500x80mm | 500x500x80mm | 500x500x80mm |
Weight(kg) | 12.5/7kg | 12.5/7kg | 12.5/7kg | 12.5/7kg |
Brightness(nits) | 5000 | 5000 | 5000 | 5000 |
Scan | 24s | 21s | 16s | 13s |
Color Temperature | 2500k~10000k | 2500k~10000k | 2500k~10000k | 2500k~10000k |
Viewing Angle(H./V.) | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
Gray Scale(Bit) | 16 | 16 | 16 | 16 |
Fresh rate(Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
Working Voltage | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ |
Power Consumption Max(W) | 640 | 640 | 640 | 640 |
Power Consumption AVG(W) | 240 | 240 | 218 | 240 |
Operating Temp(℃) | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ |
Maintenance way | Front/back | Front/back | Front/back | Front/back |
