Foldable

LED Poster Display Screen

GOB,COB and SMD technology can be used this LED poster display

LED poster display cabinet matches with GOB,COB orSMD LED module.Extremely high compatibility

The all-in-one poster LED display content can be updated via phone,WiFi wireless through could.Also support update by PC via lan or U disk.

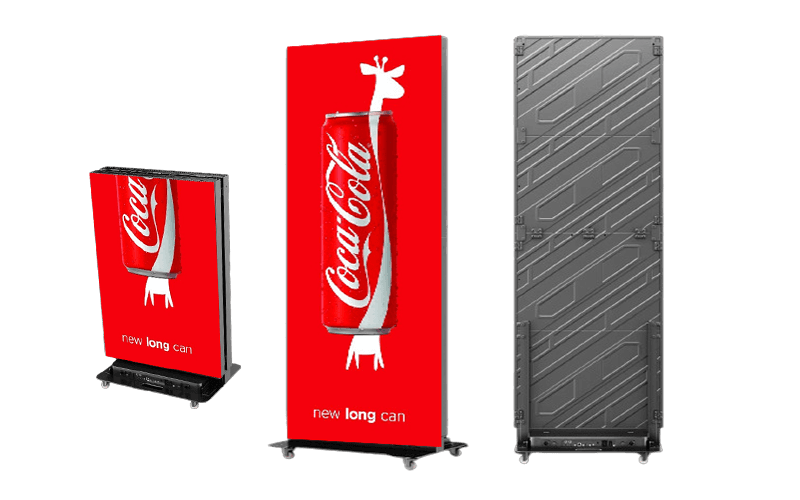

Fold-able packing makes transportation be unrestricted by length.It can put insde the regular elevator and get through door easily.

The all-in-one poster LED display cabinet supports wall mounting,lifting or moveable satand on the floor

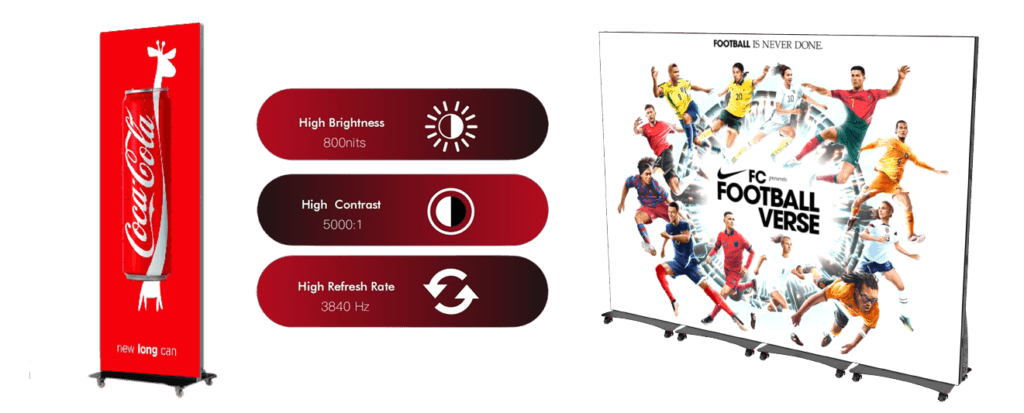

The All-in-one poster LED screen support single display or multiples seamless splice together to display.

The 6pcs LED poster display splice together,display ratio is 16:9.

LED poster display can rent as one unit for events or sell customer as a fixed installation LED display without making the frame.

Pixel Pitch	1.25mm	1.53mm	1.86mm	2mm
LED Configuration	SMD1010/COB	SMD1212/COB	SMD1515/COB	SMD1515
Pixel Density/sqm	422500 pixels	422500 pixels	288906 pixels	250000 pixels
Module Size/mm	320X160	320X160	320X160	320X160
Module Resolution	256 x 128	208 x 104	172x 86 pixels	160x 80 pixels
Cabinet Size	640 X 480mm
Cabinet Resolution	512 x 384pixels	416 x 1248pixels	344 x 1032pixels	320x 960pixels
IP Rating	IP42 without GOB(IP65 in front surface with GOB/COB)
Brightness /sqm	300-800 nits
View Angle/°	140°/ 140°(H/V)
Gray Scale/bit	12-16 bit
Max. Power Consumption/W	300-500 W/sqm
Ave. Power Consumption/W	100-150W/sqm
Refresh Frequency/Hz	3840/7680 Hz
Operating Power	AC:100V/ 240V, 50/60Hz
Operating Temperature	-10℃~+45℃
Operating Humidity	10~90%RH
Operating Life	100,000Hours
