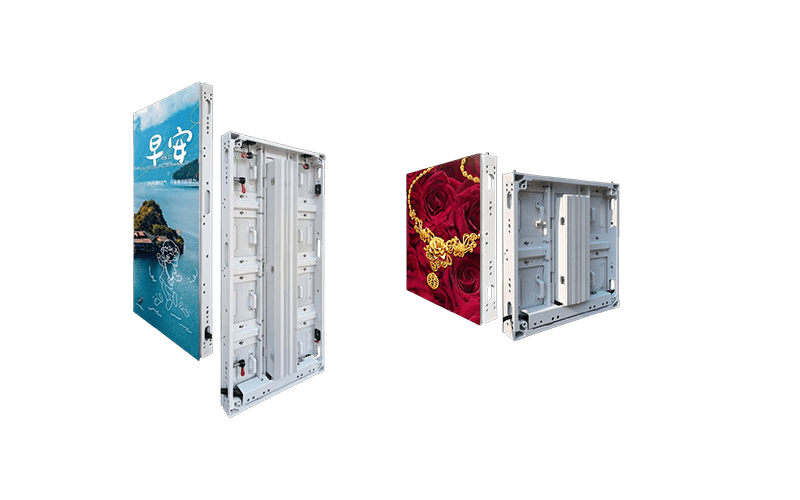

Outdoor Fixed 500x500mm 500x750mm 500x1000mm LED Display

Outdoor Fixed 500x500mm 500x1000mm LED display adopts a thinner and lighter design

Panel size：

500x500x70mm,500x750x70mm and 500x1000x70mm

Panel weight：

9KG,12.5kg,17.7kg

Pixel pitch:

P2.97,P3.91,P4.81,P6.25,P7.81,P10.4

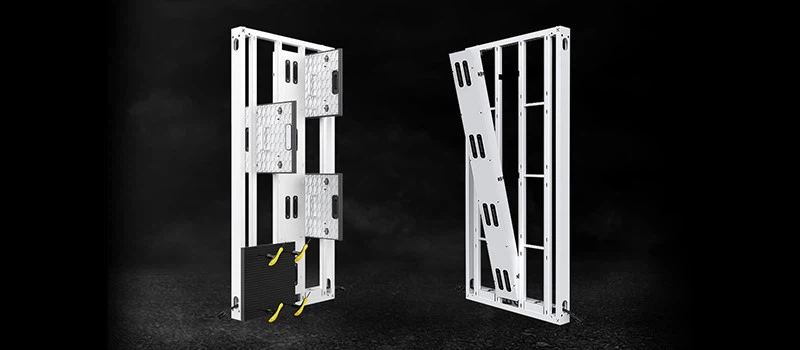

Full front maintenance and mounting



Using a hex socket tool,the outdoor fixed 250x250mm LED display module can be easily dismantled and installed, improving maintenance efficiency.The installation can fix in front,no maintenance channel is required, saving installation space.

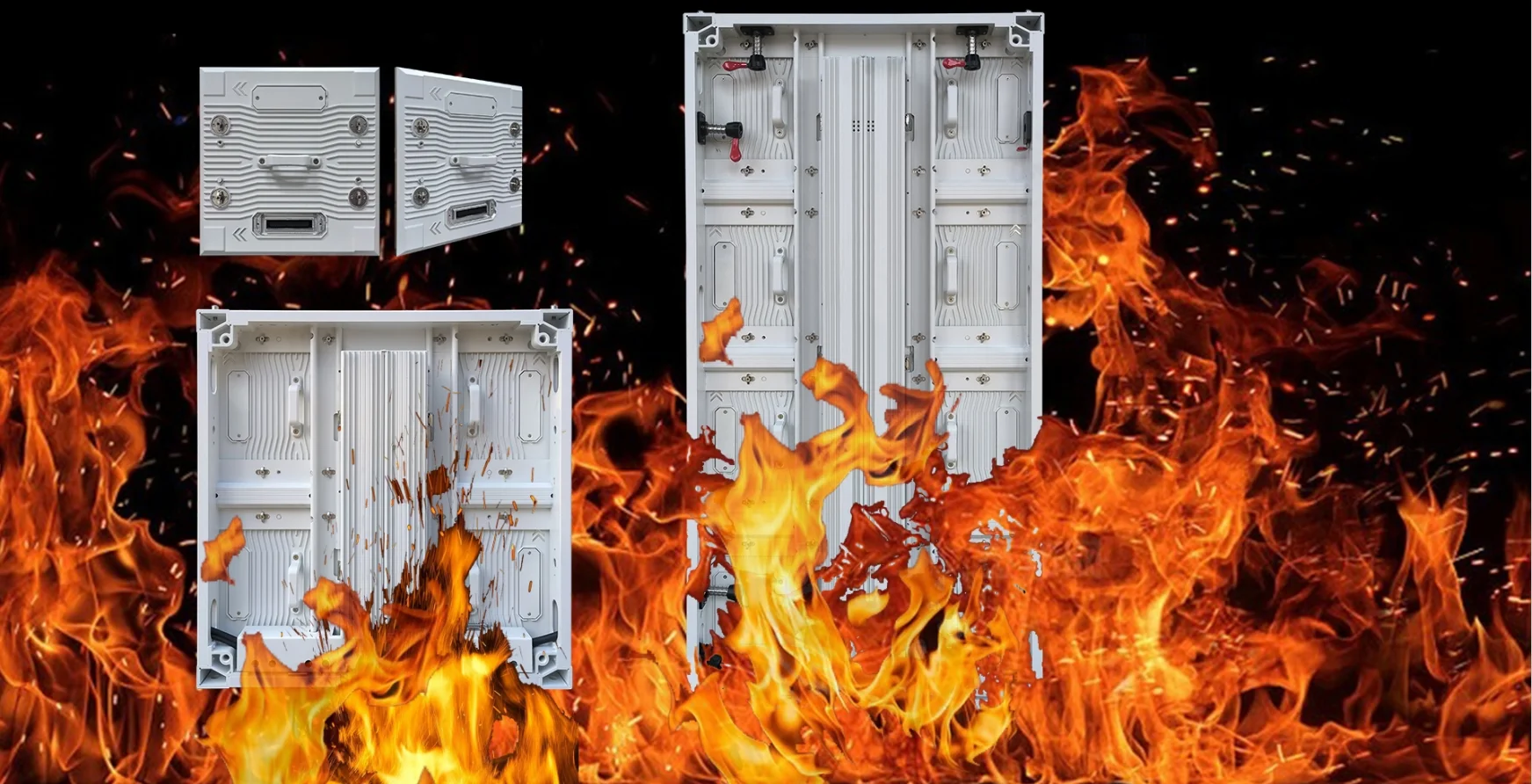

Aluminum module shell,high protection,high heat disspation ability,fireproofing


The 250x250mm module adopts an aluminum shell design with a fire resistance rating of 5VB fireproofing.The 500x500mm 500x1000mm LED display cabinet is constructed with white or black aluminum profile,it has high-temperature resistance,excellent heat dissipation, and superior safety performance.Even under prolonged use, the base shell remains crack-resistant, ensuring long-lasting durability.

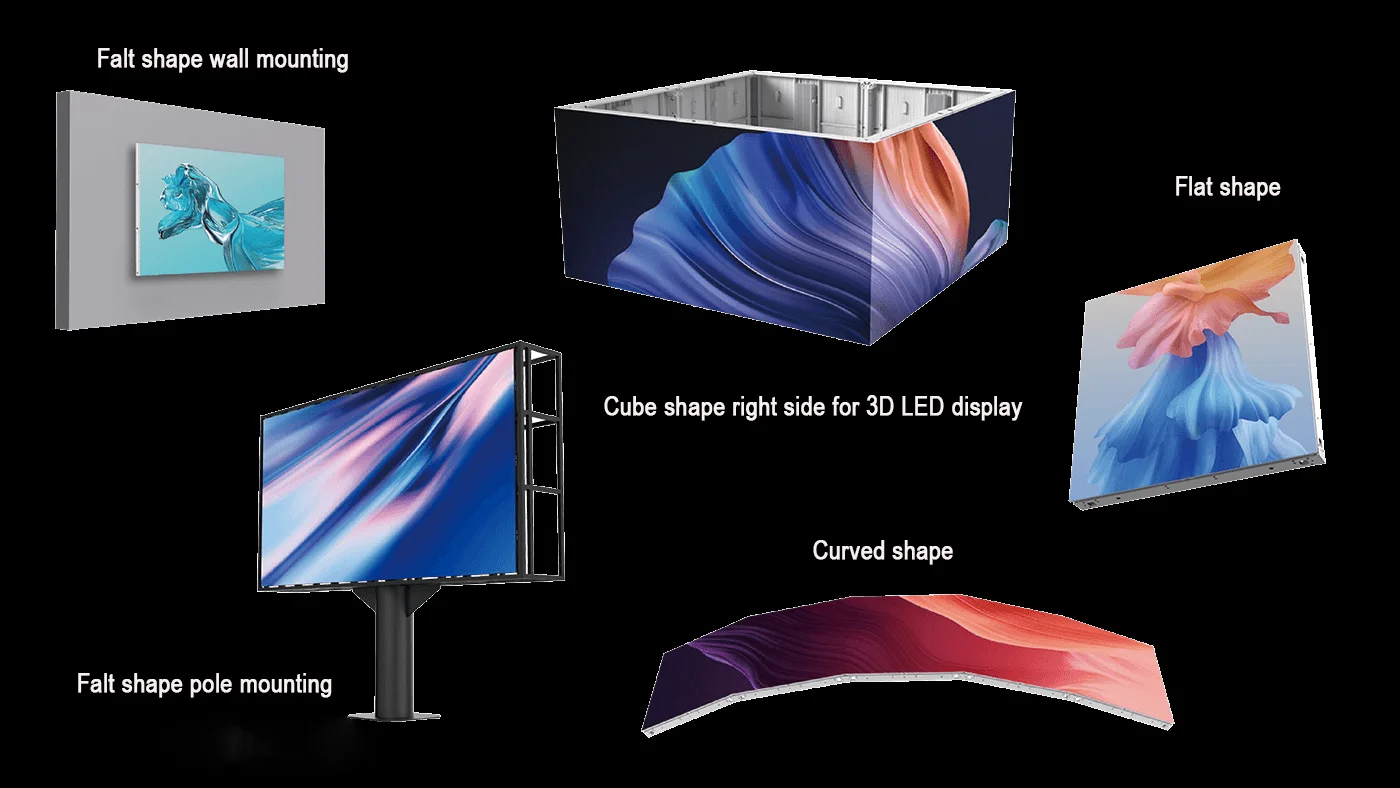

Multiple shapes support 90 degree corner,curved shape,cube shape to get 3D LED display



The 500x500mm,500x750mm and 500x1000mm LED display cabinet support concave, convex, right angle shapes,cube shapes according to the installation site.

Specifications

Outdoor-Ultra-Fine-Pixel-Pitch-LED-Display
ItemP2.97P3.91P4.81P6.25P7.81P10.42
Pixel Pitch2.97mm3.91mm4.81mm6.25mm7.81mm10.42mm
Resolution(px/㎡)11289665,53643,26425,60016,3849,216
LED Type SMD1921SMD1921SMD2727SMD2727/SMD3535SMD2727/SMD3535
Module Size 500x250mm
Brightness(cd/㎡) 4500-5500/6500-70005000-5500/6500-70005000-5500/6500-70006000-100006000-100007000-10000
ViewingAngle(H./V)140°/ 140°140°/ 120°
Cabinet Size(W×H))500x500x70mm,500x750x70mm,500x1000x70mm
Weight(kg/㎡)9kg/pcs,12.5kg/pcs,17.7kg/pcs
Color Processing(bit)12-16bit
Refresh Rate1920/3,840/7680 Hz
Max/Avg. Power (W/㎡)800/250

Related Downloads

Outdoor-Fixed-500x500mm-500x750mm-500x1000mm-LED-Display

3.8MB

2025-6-21
