Rental LED Display E3
High compatibility, flexibility and a variety of innovative designs

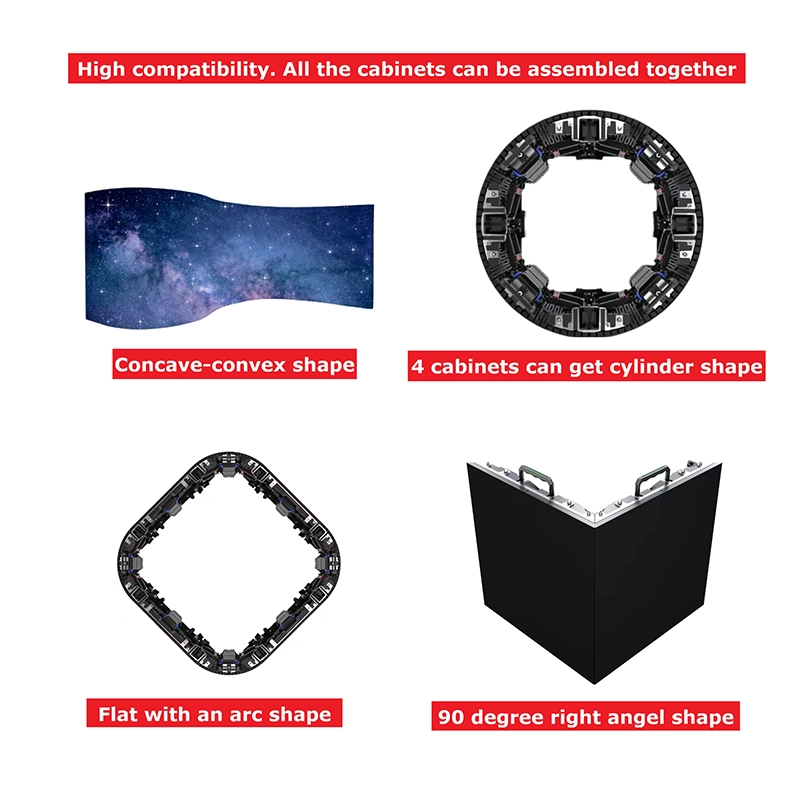

E3 Flexible bendable cabinet that fits into any space.
It can be mixed and assembled with 45° and curved straight cabinet to get convex and concave and 90°corners in versatile setup.
The power and signal HUB is universal,you can exchange them quickly and saved spare parts storage space.
High flexibility

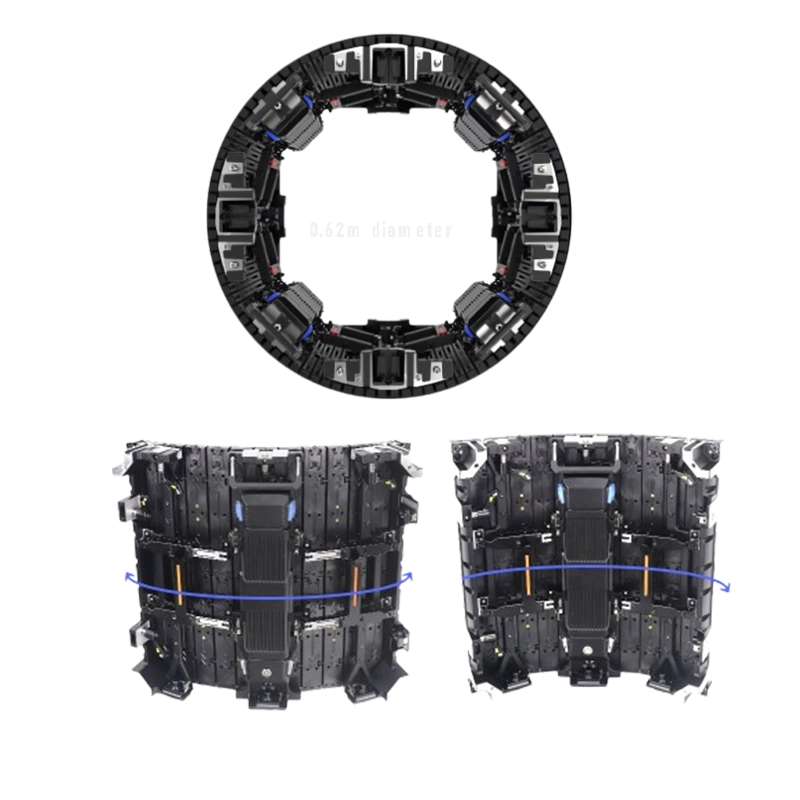

The E3 flexible rental LED display support 4 cabinets to get one 0.62m minimum diameter cylinder.Standard flexible cabinet inner adjust is 22.5°,outer arc adjustment is 2.5°.
Easy Handling & Quick Setup

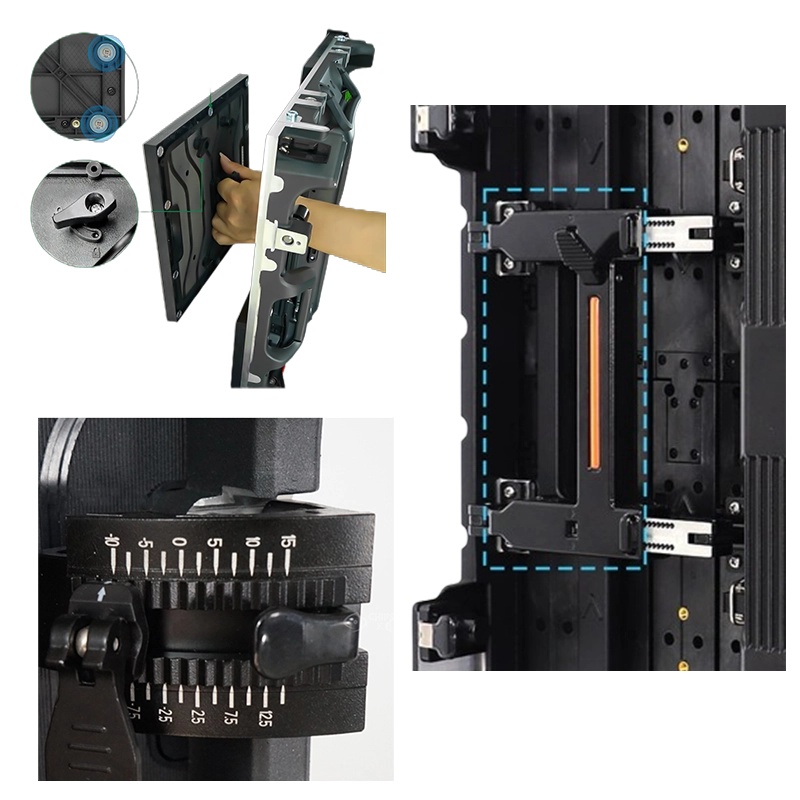

E3 rental LED screen support module front and backside maintenance,it is easy to replace modules at events.
By adjusting the locks,it can assemble the concave and convenx shapes.The LED display angles adjust from -10° to +15°.
2pcs 45 degrees bevel LED screen can be spelled into 90 degree right angles,4 LED panel can be spelled square cube LED display.
LED display cabinet has options corner protector
The LED screen cabinet has four corner protector to prevent damage to the diodes during the transportation, installation, operation,dismount and assemble.
Powerful protection for a worry-free GOB LED display.
The module can glue filling as GOB module which protects the screen surface from water, dust, bumps, and static electricity.
Item | P1.953 (indoor/outdoor) | P2.604 (indoor/Outdoor) | P2.976 Indoor/outdoor | P3.91 Indoor/outdoor |
Pixel Pitch(mm) | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
Resolution(px/㎡) | 262,144 | 147,456 | 112,896 | 65,536 |
LED Type | SMD1515(Indoor)/SMD1415(Outdoor) | SMD2020(Indoor)/SMD1921(Outdoor) | ||
Module size | 250x250mm | |||
Brightness(cd/㎡) | 700-900 | 750-950(Indoor)/4000-5000(outdoor) | ||
Viewing Angle(H./V) | 140°/ 140° | 140°/ 140° | 140°/ 120° | |
Cabinet Size(W×H)) | 500x500x80mm/500x1000x80mm | |||
Weight(kg/㎡) | 24kg | |||
Color Processing(bit) | 12-16 | |||
Refresh Rate | 1920/3,840/7680 Hz | |||
Max/Avg. power (W/㎡) | 550/100(Indoor) 800/200(Outdoor) | |||
